Mondraker - Level R

Frame: Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Rear shock: Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
Fork: Fox 38 29 Float FIT GRIP EVOL Performance, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Stem: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Brakes: SRAM Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: SRAM Code R, tool-free reach adjust

Price: £5,999

Coming Soon: Medium

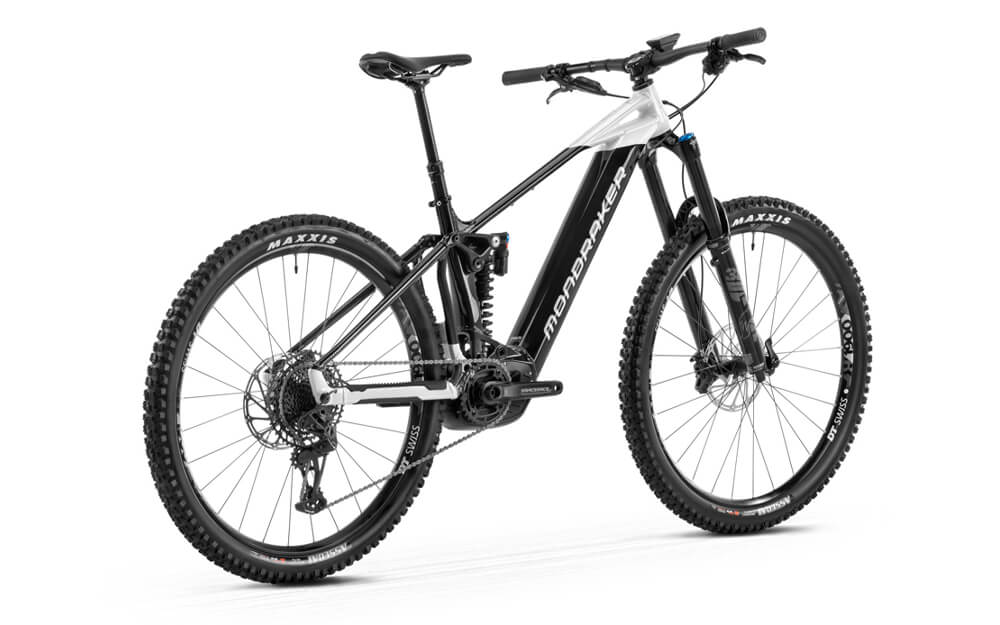

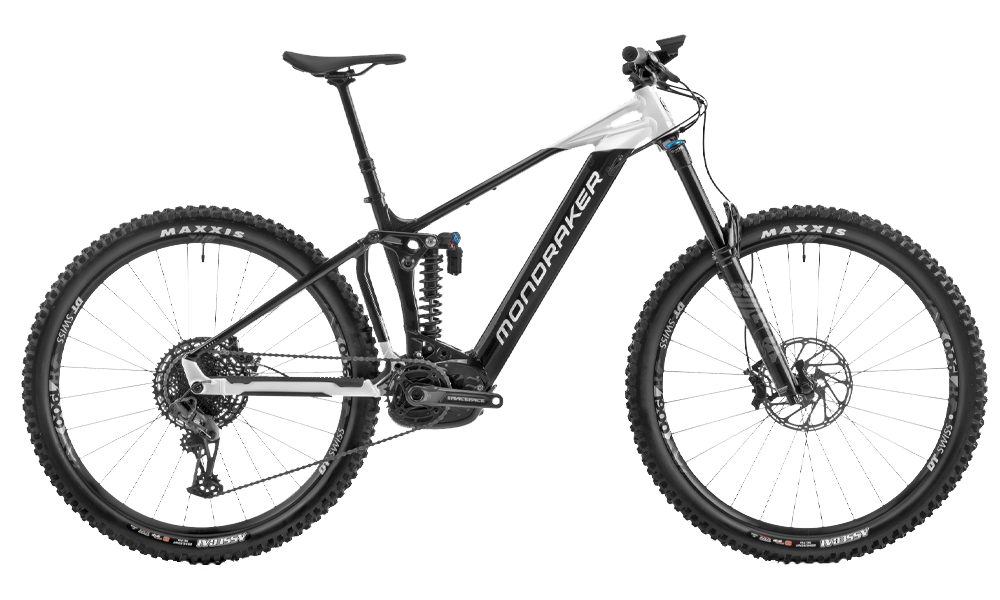

Mondraker-Level-R-2022-Bike

Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Tyres: Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset: Race Face Aeffect ebike, 165mm
Chain: SRAM SX Eagle, 12s, Powerlock
Rear derrailleur: SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers: SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Cassette: SRAM PG-1210, 11-50T, 12s
Derailleur hanger: Mondraker M068
Weight: 26.1 kg
Display: Bosch Kiox 300
Motor: Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3
Battery: Bosch Powertube 750Wh

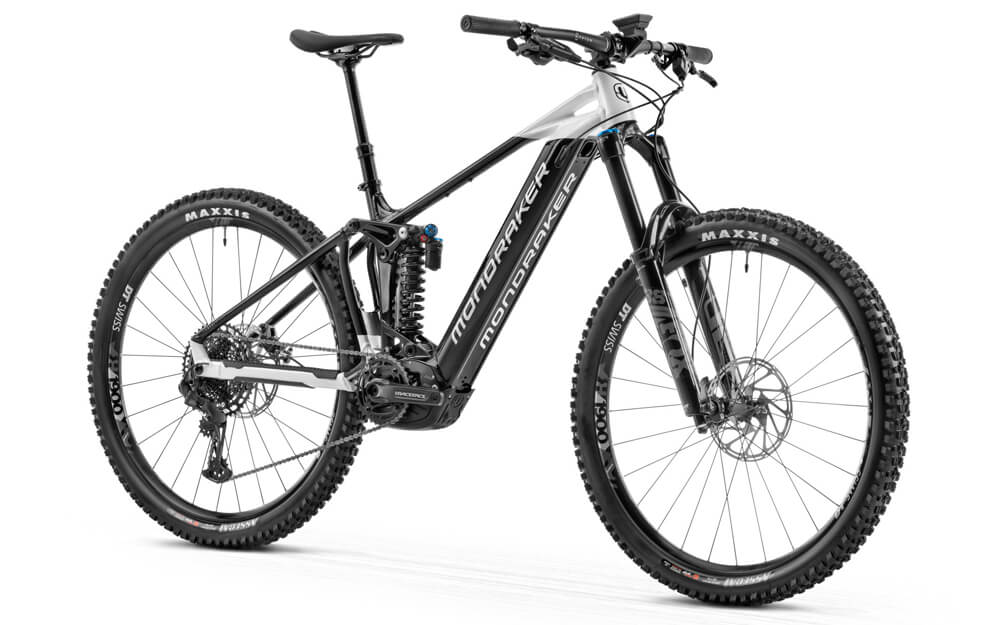

Mondraker-Level-R-2022-Bike
