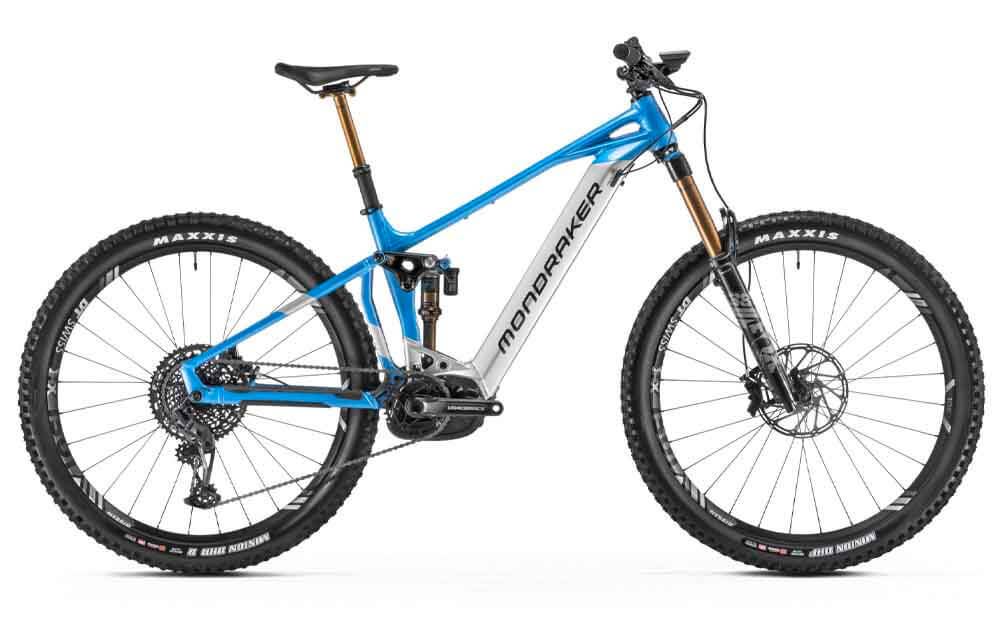

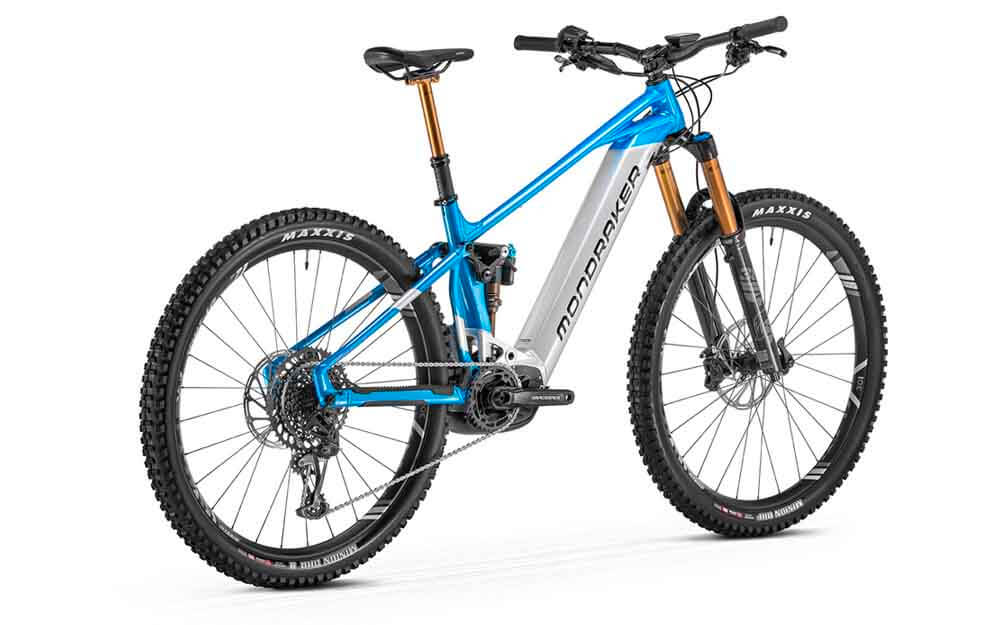

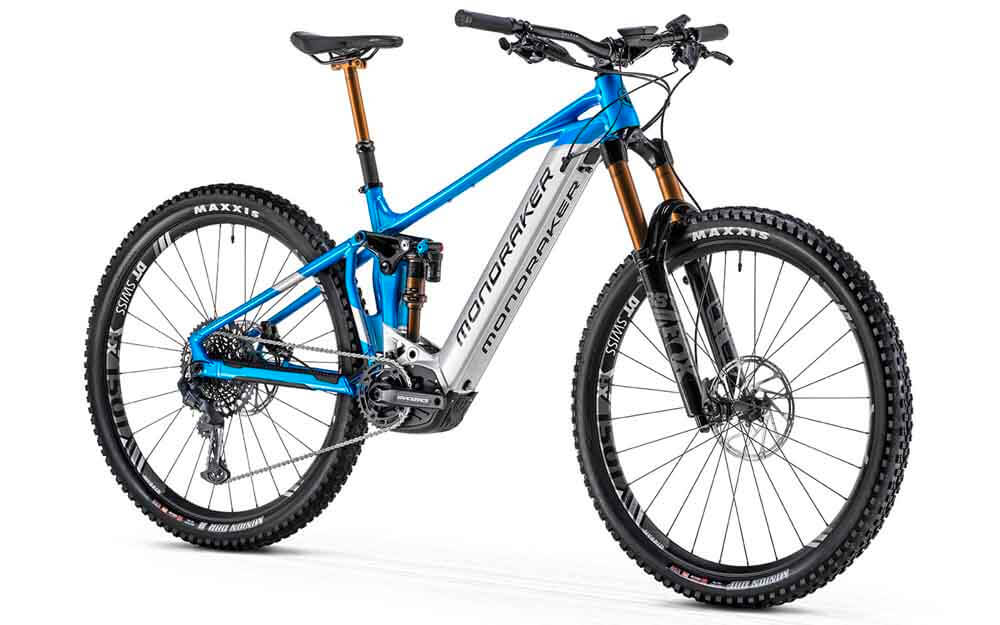

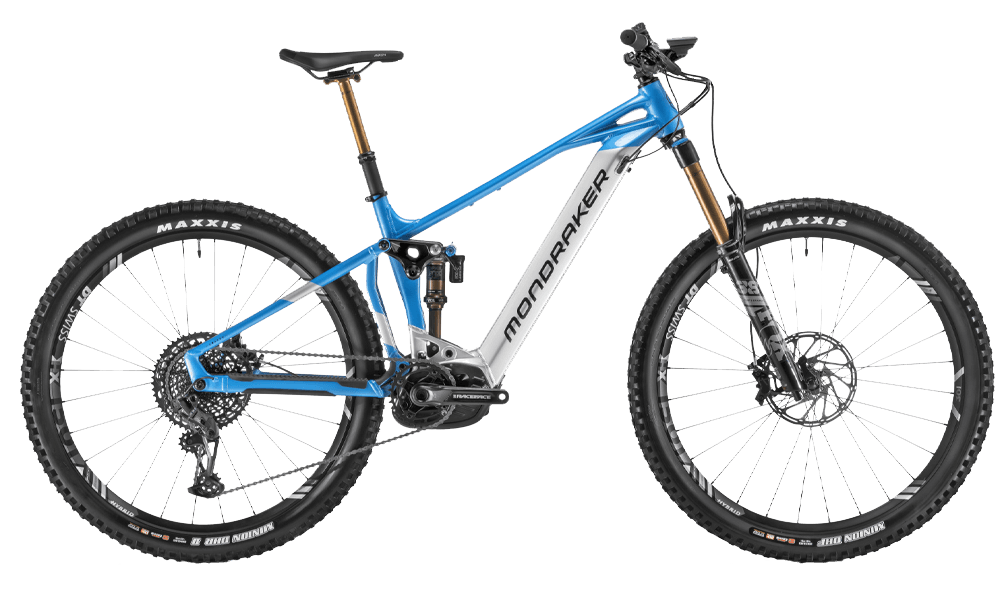

Mondraker - Crafty RR

Frame: Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock: Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings: CEC001 compression, Medium rebound, 0,2 volume spacer
Fork: Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 position with micro adjust compresion, low-speed rebound, air preload
Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Price: £6,499

In Stock: Medium & Large

Mondraker-Crafty-RR-Bike

Seatpost: Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm
Saddle: FIZIK Terra Aidon X5 145mm
Brakes: Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Code R, tool-free reach adjust
Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Front hub: Mavic, Boost 15x110mm, IS 6 bolts
Rear hub: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
Tyres: Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset: Race Face Aeffect ebike, 165mm
Rings: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain: Sram NX Eagle, 12s, Powerlock
Rear derrailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers: Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Cassette: Sram XG-1230, 11-50T, 12s
Weight: 24.9 kg
Display: Bosch Kiox 300
Motor: Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3
Battery: Bosch Powertube 750Wh

Mondraker-Crafty-RR-Bike
